WEDI BOARD 6X600X1250

wedi building board 6 mm — waterproof XPS substrate 600×1250

wedi board combines a blue XPS core with double-sided cementitious skins reinforced with glass mesh. Flat, fully waterproof and lightweight substrate ready to tile or render; thermally insulating and dimensionally stable.

Key benefits

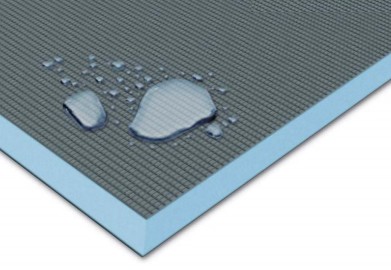

• Blue XPS — 100% waterproof; remains functional after non-penetrating damage.
• Cement skin + mesh — excellent adhesion for tile adhesives and renders.
• System watertightness with wedi 610 — no extra membrane at joints.
• Thermal/acoustic comfort, mould protection, energy savings.
• Lightweight and rigid; easy to cut and fix on various substrates.

Technical data

• SKU: 000-316559ASP
• EAN/GTIN-13: 4024125060011
• Board size: 6×600×1250 mm (0.75 m²/board)
• Core: XPS (extruded polystyrene), blue
• Facing: double-sided cementitious skin, glass mesh inside
• Thermal conductivity (EN 13164): 0.036 W/(m·K)
• Density (EN 1602): ≈32 kg/m³
• Vapour diffusion μ (EN 12086): ≈100
• Capillarity: 0
• Linear expansion: 0.02 mm/m·K
• Long-term compressive strength (EN 1606, ≤2%/50y): 0.08 N/mm²
• Sound insulation (DIN EN ISO 140-3, 12.5 mm sample): Rw,P ≈ 23 dB (6 mm differs)
• Service temperature: −50…+75 °C
• Reaction to fire (EN 13501-1): E
• Packing size: 250×60×0.60 cm
• Gross weight: 2.64 kg

Applications

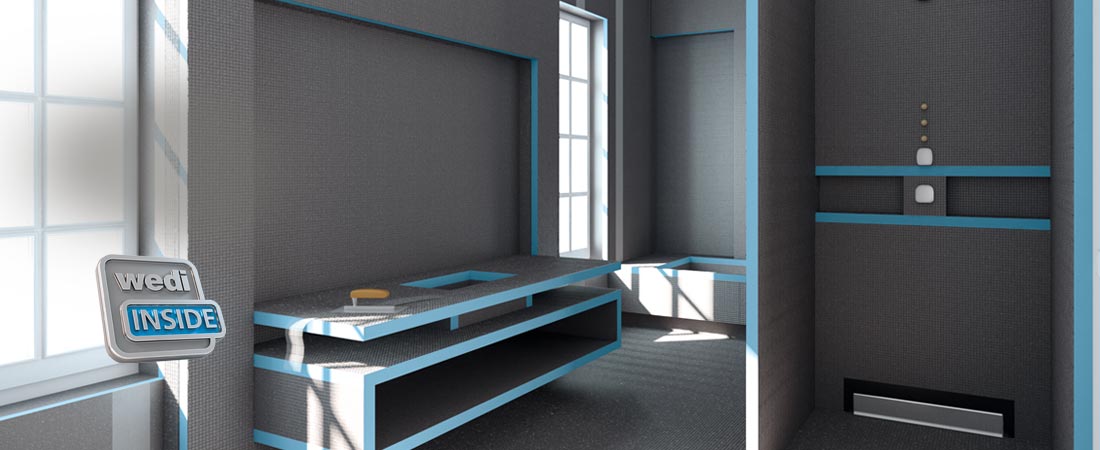

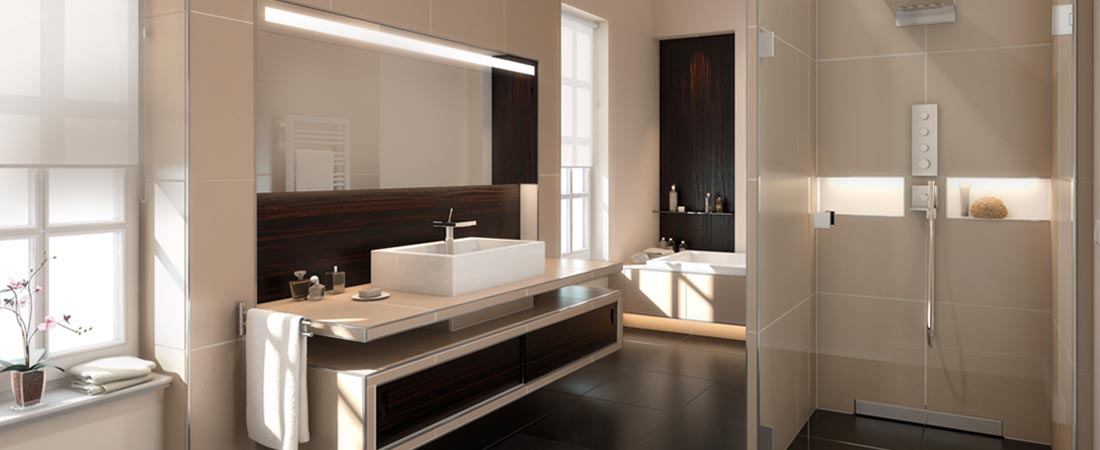

• Walls, ceilings and floors in wet areas (bathrooms, showers, SPA).
• Concrete, masonry, drywall, timber/steel framing and other sound substrates.

Delivery

• Tallinn, Estonia: courier DPD/CargoBus — from €13.
• Helsinki: from €55; rest of Finland — on quote, ~2–3 business days.
• Dispatch: business days only; no dispatch on weekends/public holidays.

Detailed description

The board provides a flat, strong and watertight surface. Low λ (0.036 W/m·K) and dimensional stability create a warm, reliable base and protect the structure from moisture. With wedi 610, joints are watertight without extra membranes. Cut with knife/saw; fix using compatible adhesives/mechanical fasteners onto sound, level substrates.

FAQ

1) Is extra waterproofing required?

With wedi 610, system joints are watertight; a separate membrane is usually unnecessary.

2) Which adhesives?

C2/S1 tile adhesives plus compatible wedi system adhesives/sealants.

3) Suitable substrates?

Concrete, masonry, drywall, timber/steel frames — if sound and level.

4) Using 6 mm on floors?

As decoupling/levelling layer in system build-ups; choose thicker boards for load-bearing floors.

5) Can I skim/paint?

Yes, over the cement skin with appropriate primers and materials.

6) Storage & UV?

Protect from prolonged UV during storage; in use the board is behind finishes.

7) Corners & transitions?

wedi tapes/profiles; continuous sealing with wedi 610.

8) Cutting & dust?

Knife/saw; minimal dust — use PPE.

9) Service temperature?

−50…+75 °C; avoid continuous overheating.

10) Underfloor heating compatibility?

Yes, within approved system build-ups per UFH and wedi guidance.

11) Dispatch schedule?

Business days only; no dispatch on weekends or public holidays.

12) What is wedi 610 310 ml for?

Adhesive-sealant for bonding/sealing board joints/corners, penetrations, profiles/tapes, shower bases and accessories; forms an elastic, watertight seam; also bonds to mineral substrates.
