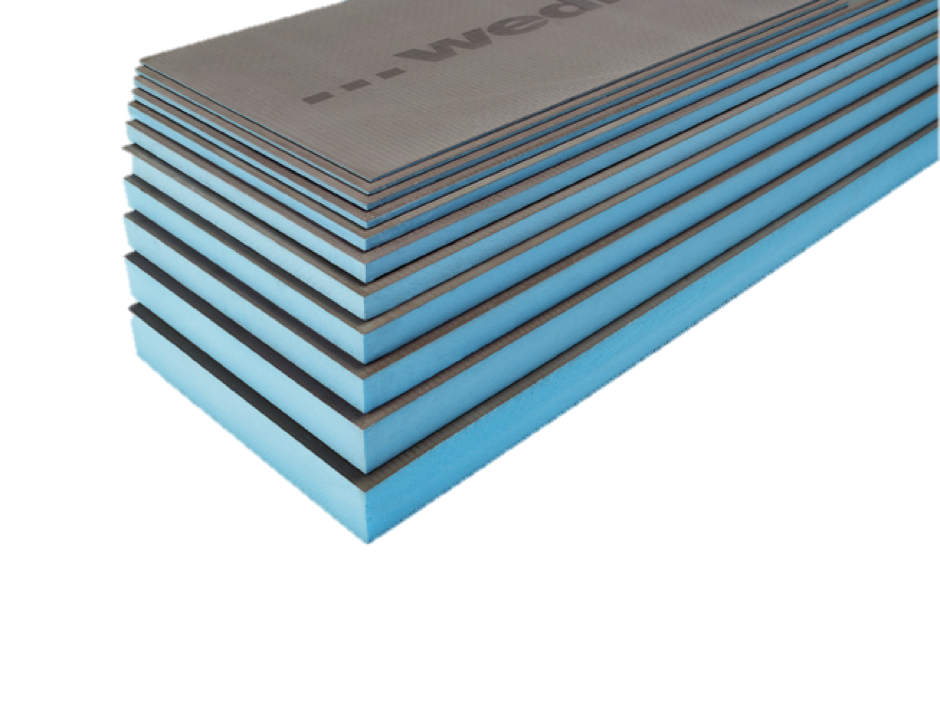

WEDI PLATE 20X600X2500
Specification
- Waterproof gyprock: Wedi waterproof building board
- Length (mm): 2500
- Width (mm): 600
- Thickness (mm): 20
Product features

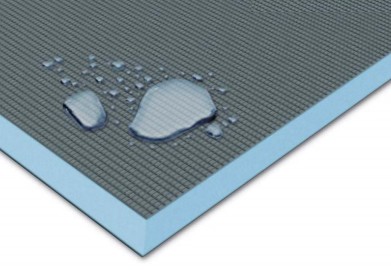

+ wedi building board consists of a blue core with extruded polystyrene foam
+ Ideal substrate for immediate tiling or plastering / plastering
+ Can be installed on almost any substrate, is waterproof, heat insulating, light and stable
+ Blue XPS foam is 100% waterproof and remains fully functional even in the event of impermeable damage
+ With wedi 610, the system is waterproof and no additional compaction is required
+ Cement surface is very well adhesive and cementitious glass mesh resistance to tensile forces.
+ All building board systems are a good thermal insulator, save energy and protect against mold
Uses
+ Suitable for wall, ceiling and floor use
+ For almost any substrate: concrete, stone, wooden frame, metal frame, etc.
Key technical specifications
+ Sound insulation according to DIN EN ISO 140-3 (for 12.5 mm boards): Rw P 23 dB
+ Linear coefficient of thermal expansion: 0.02 mm / mK
+ Long-term pressure (50 years) ≤ 2% reduction EN 1606: 0.08 N / mm²
+ Thermal conductivity EN 13164: 0.036 W / mK
+ Density EN 1602: 32 kg / m³
+ Water vapor resistance index (μ) EN 12086: 100
+ Capillarity: 0
+ Temperature stability: -50 ° C to + 75 ° C
+ Fire resistance EN 13501: E
Product details
Weight: 5.78 kg
Sizes of containers: 250.00 x 60.00 x 2.00 cm
Waterproof gyprock
|
Wedi waterproof building board |
Length (mm)
|
2500 |
Width (mm)
|
600 |
Thickness (mm)
|
20 |
can be changed by the manufacturer without notice.
