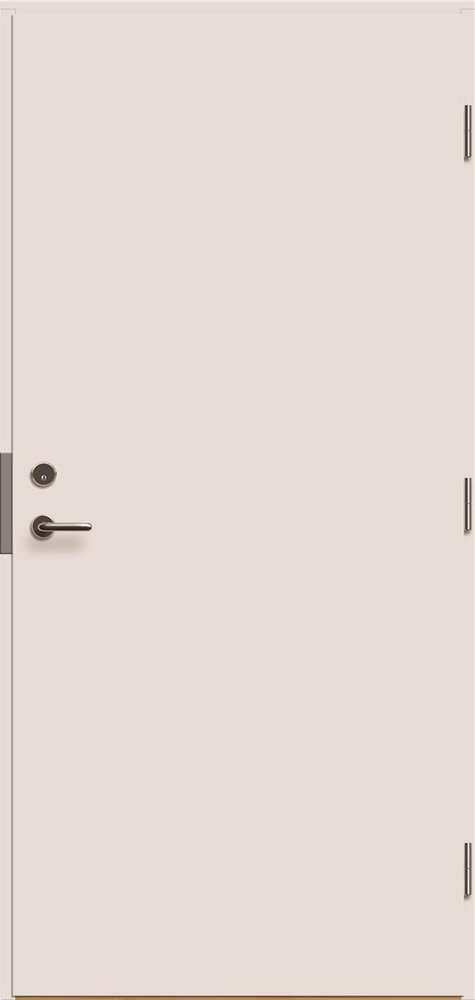

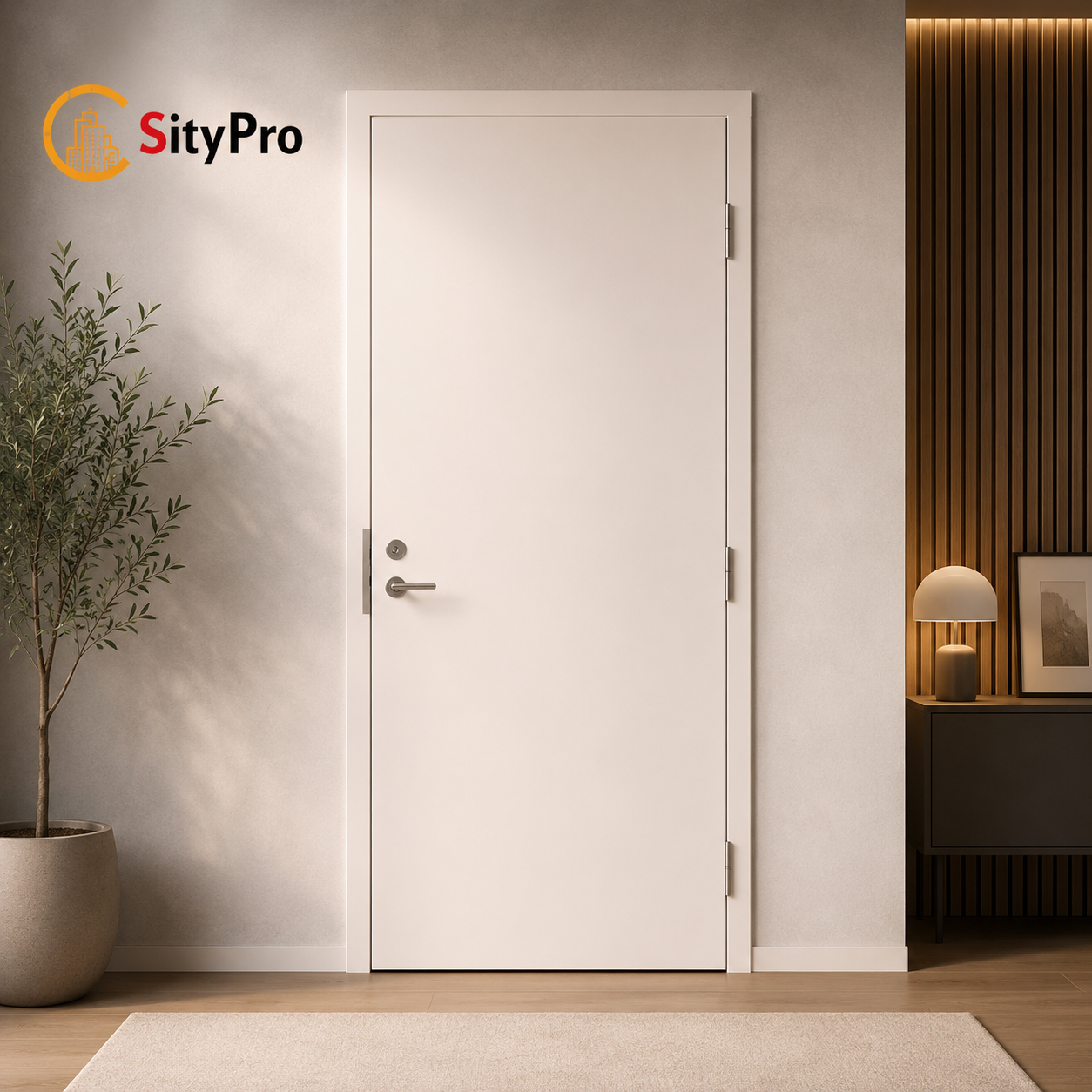

Interior door White 7X21 EI30/39dB right
Specification
Fire door No30, left hand
Size: aperture 7×21 dm (JAMB external dimension 690×2090 mm)
Soundproofing: Rw 39dB
Fire resistance: class EI30
Smoke Resistance: Sa / S 200
Door leaf: smooth door leaf with mantel edge thickness 52 ± 1 mm, vertical edges covered with edge heel, horizontal edges finished.
Leng: Pinewood 42×92 mm
Threshold: Oak 25mm
Lock case: ASSA 565 (does not include handles and lock core)
Hinges: Abloy NTR 110-30TSS ZN
Seal: o10 White fire seal in length and threshold.
Finish: White (NCS S 0502-Y)
Application: to close openings between fire sections of heated working and living spaces, the temperature difference in the rooms shall not be more than 5C
Детальное описание
Вес нетто: 59,00 kg
Вес брутто: 60,00 kg
Размеры товара: 69,00 x 9,20 x 209,00 cm
Размеры упаковки: 70,00 x 10,00 x 210,00 cm
Description provided by sitypro.com
| File name | Date added | File size | Download |
|---|---|---|---|
| FD09-Inspecta-Vastavussertifikaat | 29/11/2021 | 2.53MB | Download |
| FD09-Toimivusdeklaratsioon-2014.10.01 | 29/11/2021 | 21.76KB | Download |
| FD09-tooteinfo | 29/11/2021 | 368.44KB | Download |
| Garantiitingimused-140402-EST | 29/11/2021 | 60.58KB | Download |
| Tuletõkkeukse paigaldus ja hooldusjuhend | 29/11/2021 | 141.08KB | Download |
| Garantiitingimused-140402-EST (1) | 30/11/2021 | 60.58KB | Download |
