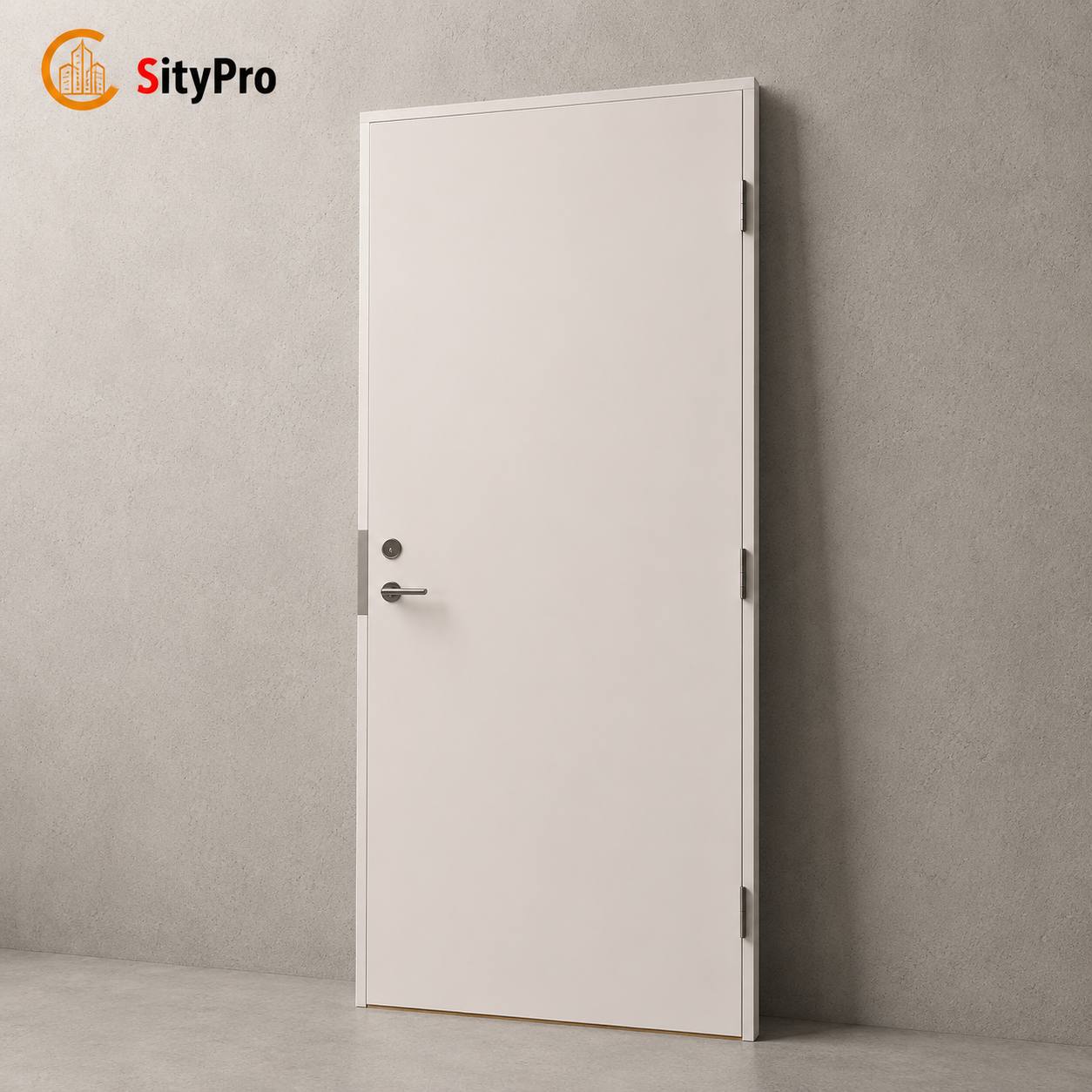

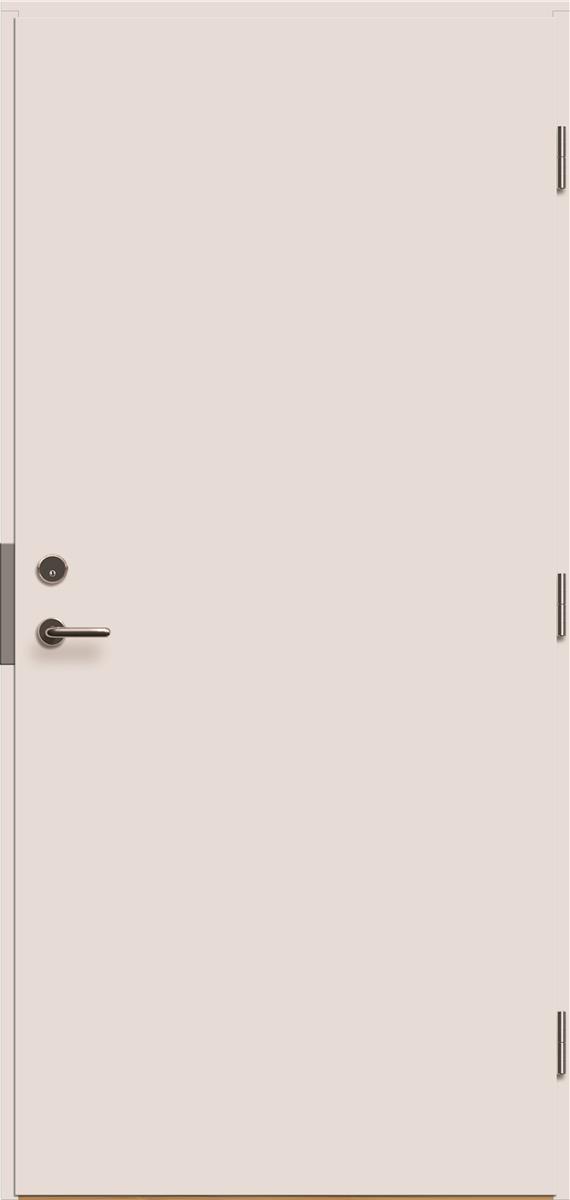

Fireproof door White 7X21 EI30/39dB right
Specification
Fire door No30, right hand
Size: aperture 7×21 dm (JAMB external dimension 690×2090 mm)
Soundproofing: Rw 39dB
Fire resistance: class EI30
Smoke Resistance: Sa / S 200
Door leaf: smooth door leaf with mantel edge thickness 52 ± 1 mm, vertical edges covered with edge heel, horizontal edges finished.
Leng: Pinewood 42×92 mm
Threshold: Oak 25mm
Lock case: ASSA 565 (does not include handles and lock core)
Hinges: Abloy NTR 110-30TSS ZN
Seal: o10 White fire seal in length and threshold.
Finish: White (NCS S 0502-Y)
Application: to close openings between fire sections of heated working and living spaces, the temperature difference in the rooms shall not be more than 5?C
Detailed description
Net weight: 59.00 kg
Gross weight: 60.00 kg
Product Dimensions: 69.00 x 9.20 x 209.00 cm
Package dimensions: 70.00 x 10.00 x 210,00 cm
Description provided by sitypro.com
File name | Date added | File size | Download |
---|---|---|---|
FD09-Inspecta-Vastavussertifikaat | 29/11/2021 | 2.53MB | Download |
FD09-Toimivusdeklaratsioon-2014.10.01 | 29/11/2021 | 21.76KB | Download |
FD09-tooteinfo | 29/11/2021 | 368.44KB | Download |
Garantiitingimused-140402-EST | 29/11/2021 | 60.58KB | Download |
Tuletõkkeukse paigaldus ja hooldusjuhend | 29/11/2021 | 141.08KB | Download |
Garantiitingimused-140402-EST (1) | 30/11/2021 | 60.58KB | Download |
