FAN E-EXTRA EAT125HT D125mmTAIMER+NIISKUSA
| Package dimensions | 17,50 x 11,50 x 18,00 cm |
| Net weight | 0,510 kg |

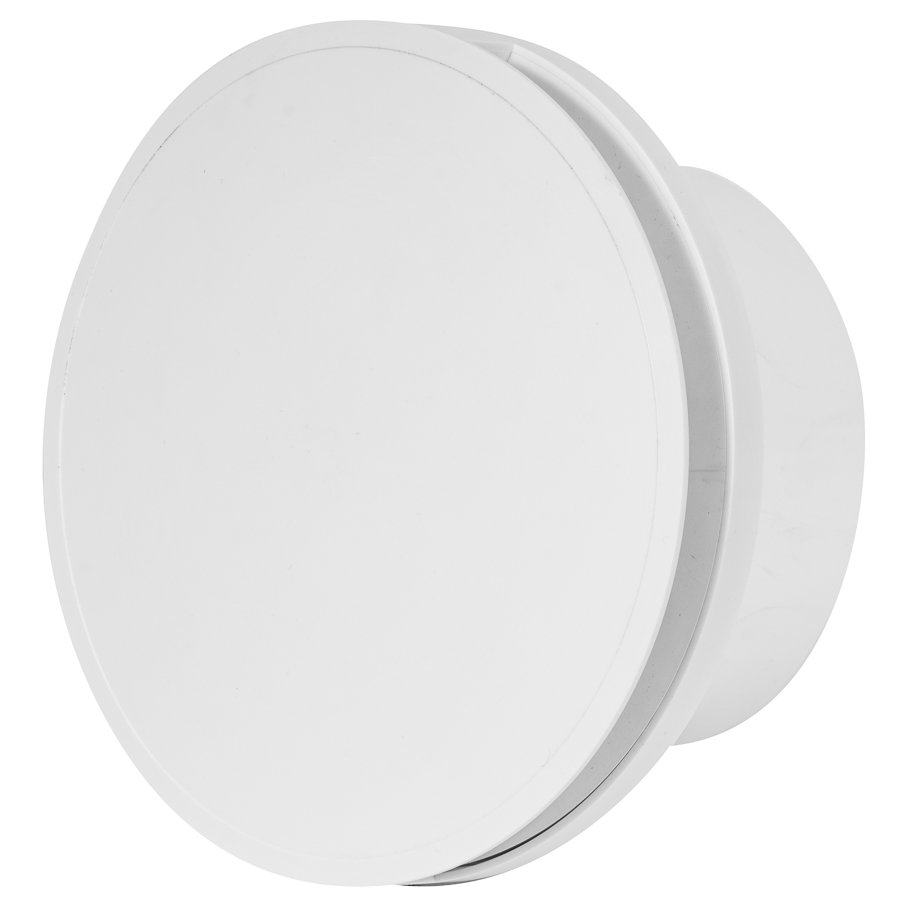

Compact 125 mm Duct Extract Fan with Timer and Humidity Sensor
Inline duct fan designed for ventilation of small wet and dry rooms; fits 125 mm duct systems and provides timed, humidity‑controlled extraction.
Key Benefits
- Designed for 125 mm ducts — easy replacement or upgrade
- Airflow of ~180 m³/h for effective ventilation
- Low power consumption (~18 W) for energy‑efficient operation
- Quiet operation (~34 dB) suitable for residential spaces
- Protection class IP X4 — suitable for moist environments
- Compact white housing (170×170×125 mm) for discreet installation
Built‑in timer and humidity sensor for automatic control and comfort benefits
Applications
Suitable application areas where moisture control and extraction are needed.
- Toilet
- Kitchen
- Corridor
Bathroom
What to Consider When Choosing
- Check protection class (IP X4) if installing in wet zones
- Ensure airflow (~180 m³/h) matches the room's ventilation needs
- Consider noise level (~34 dB) for comfort in living areas
- Verify electrical compatibility: ~18 W power at 220 V
- Check physical dimensions (170×170×125 mm) for mounting space
Confirm duct diameter compatibility — this unit is for 125 mm ducts
Specifications
- Model: EAT125HT D125 mm
- SKU: 000‑450890ASP
- MPN: EAT125HT
- Duct diameter: 125 mm
- Power: ~18 W
- Voltage: 220 V
- Airflow: ~180 m³/h
- Noise level: ~34 dB
- Protection class: IP X4
- Colour: white
- Dimensions (H×W×D): 170×170×125 mm
- Features: timer and humidity sensor
- Recommended rooms: bathroom, toilet, kitchen, corridor
Brand: E‑EXTRA
Why Buy from SityPro
- Complete features and specification details to compare models
- Fast delivery options, including delivery to Estonia and Finland
- Expert customer support to assist with selection and application
- Secure checkout and convenient shopping experience at SityPro
Easy to buy online with clear price information on the product page
Related Products
Also looking for
Frequently asked questions about the FAN E-EXTRA EAT125HT D125mmTAIMER+NIISKUSA
What is FAN E-EXTRA EAT125HT D125mmTAIMER+NIISKUSA and where is it used?
FAN E-EXTRA EAT125HT D125mmTAIMER+NIISKUSA is a Ø125 mm duct axial fan with timer and humidity sensor, power ~18 W and airflow ~180 m³/h. Designed for 125 mm duct systems, protection class IP X4; recommended for bathroom, toilet, kitchen and corridor.
Is this fan suitable for a 125 mm duct system?
Yes, FAN E-EXTRA EAT125HT is designed for connection to Ø125 mm duct systems and delivers approximately 180 m³/h airflow when installed in that configuration.
What is the noise level of the E-EXTRA EAT125HT and will it be audible in a bathroom?
The FAN E-EXTRA EAT125HT has a noise level of about 34 dB. This is relatively quiet, so during normal use it will be minimally noticeable in a typical bathroom.
Does this fan have moisture protection and what is the IP rating?
Yes, the FAN E-EXTRA EAT125HT has protection class IP X4, which protects against water splashes and is suitable for humid rooms like bathrooms and kitchens.
What do the timer and humidity sensor do in this model?
The timer keeps the FAN E-EXTRA EAT125HT running for a set time after lights are turned off, and the humidity sensor automatically activates the fan when humidity rises. This allows automatic operation without constant manual control.
What are the fan dimensions and how much space is needed for installation?
Dimensions of the FAN E-EXTRA EAT125HT are 170×170×125 mm (H×W×D). Installation requires a Ø125 mm duct opening and roughly 125 mm depth for the housing plus clearance for mounting.
What is the power and voltage — is it compatible with standard 220 V supply?
The FAN E-EXTRA EAT125HT has power of ~18 W and operates at 220 V, so it is compatible with standard 220 V household electrical supply.
Can this fan be used in a kitchen with greasy vapours?
The FAN E-EXTRA EAT125HT is IP X4 rated and suitable for humid rooms, but greasy vapours can accumulate in the unit; periodic cleaning and using a grease-trap in the ductwork is recommended for kitchens with regular grease exposure.
What is the airflow and is it enough for a medium‑sized bathroom?
Airflow is about 180 m³/h, which is usually sufficient for a medium bathroom (around 6–8 m² with standard ceiling height); exact needs depend on the required air-exchange rate.
What is the housing material and colour of this model?
The housing colour is white; the specific material is not stated in the description, although similar duct fans typically use durable plastic housings.
How does this model differ from other E‑EXTRA duct fans without a timer?
The EAT125HT includes an integrated timer and humidity sensor not typically found on basic E‑EXTRA duct fans; it also features IP X4 protection and an airflow of ~180 m³/h.
Which duct size: 100, 125 or 150 mm?
Match the actual duct. A smaller diameter increases noise and reduces airflow; a larger one will require an adapter.
Axial or inline?
Short, straight run — axial; long/complex run — inline or centrifugal.
Do I need a backdraft damper?
Yes, to prevent reverse flow and odors from the shaft. Some models have it built in.
How to reduce noise?
Choose a “silent” version/mode, keep the correct diameter, use flexible connectors/anti-vibration mounts, and seal properly.
What IP rating for wet areas?
At least IPX4/IP44, and observe bathroom safety zones.
