FAN E-EXTRA EAT100A D100mm ANTRATSIIT
| Package dimensions | 15,50 x 11,50 x 15,50 cm |
| Net weight | 0,450 kg |

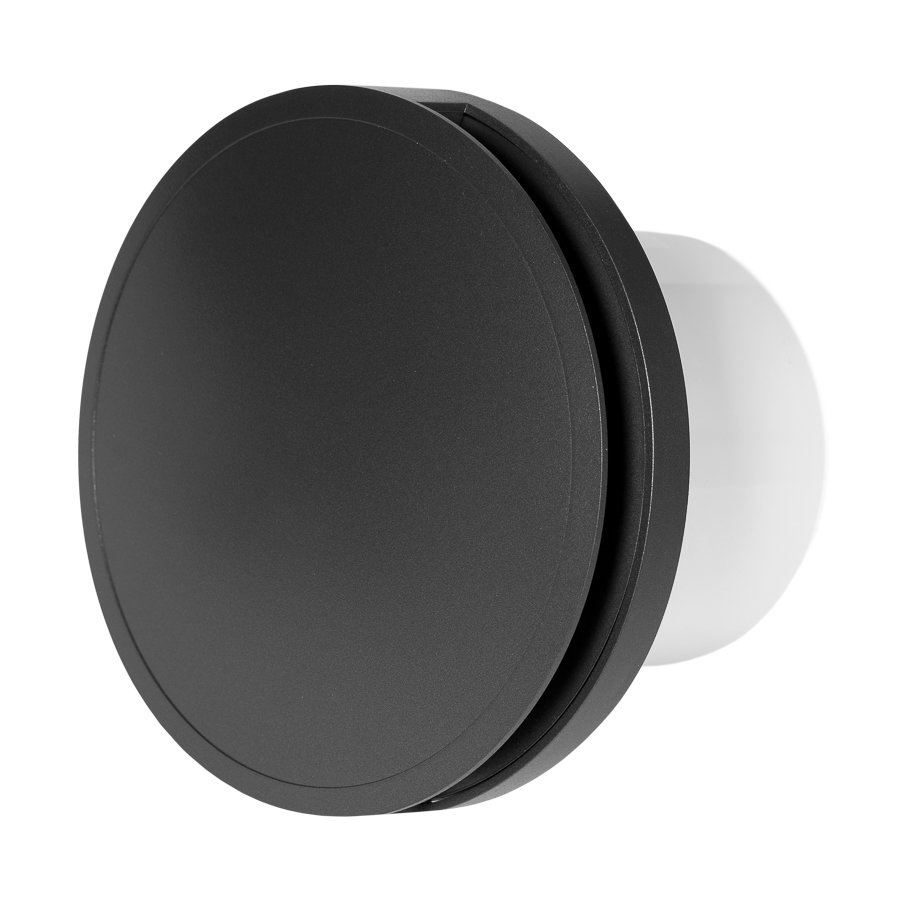

Anthracite 100 mm Duct Fan — E‑EXTRA EAT100A for Ventilation
Compact Ø100 mm duct fan designed to extract air from wet and dry rooms, offering efficient ventilation with a low-noise anthracite housing.
Key Benefits
- Moderate airflow (~120 m³/h) suitable for small to medium spaces
- Quiet performance (~32 dB) for minimal disturbance
- IP X4 protection class — safe for damp environments
- Fits standard 100 mm duct systems for easy installation
- Attractive anthracite colour and compact dimensions (140×140×110 mm)
Low power consumption (~12 W) for energy-efficient operation
Applications
Typical application areas where this fan performs well:
- Toilet
- Kitchen
- Corridor
Bathroom
What to Consider When Choosing
- Match airflow (~120 m³/h) to room size and ventilation needs
- Consider noise level (~32 dB) if installed near living or sleeping areas
- Check protection class IP X4 for suitability in wet zones
- Verify mains compatibility — rated for 220 V supply
Confirm duct diameter compatibility — this model is for 100 mm ducts
Specifications
- Model: EAT100A D100 mm
- SKU: 000‑450477ASP
- MPN: EAT100A
- Duct diameter: 100 mm
- Power: ~12 W
- Voltage: 220 V
- Airflow: ~120 m³/h
- Noise level: ~32 dB
- Protection class: IP X4
- Colour: anthracite
- Dimensions (H×W×D): 140×140×110 mm
- Recommended rooms: bathroom, toilet, kitchen, corridor
Brand: E‑EXTRA
Why Buy from SityPro
- Check current price and availability on SityPro before purchase
- Convenient ordering and local delivery to Estonia and Finland
- Dedicated customer support to assist with application and installation
- Secure checkout and reliable service for online purchases
Easy online buy with clear product features and specifications
Related Products
Also looking for
Frequently asked questions about the FAN E-EXTRA EAT100A D100mm ANTRATSIIT
What is the FAN E-EXTRA EAT100A D100mm ANTRATSIIT?
FAN E-EXTRA EAT100A D100mm ANTRATSIIT is a Ø100 mm duct axial fan with an anthracite housing, ~12 W power, ~120 m³/h airflow and ~32 dB noise level. It has protection class IP X4, 220 V supply and dimensions 140×140×110 mm; recommended for bathroom, toilet, kitchen and corridor.
Is this fan suitable for a 100 mm duct system?
Yes, the FAN E-EXTRA EAT100A is designed for 100 mm duct connections and provides approximately 120 m³/h airflow when installed into a compatible duct system.
How noisy is the fan — is it suitable for a bedroom?
The FAN E-EXTRA EAT100A has a noise level of about 32 dB, which is relatively quiet. It can be used in a bedroom, but for very strict low-noise requirements consider dedicated low-noise models.
What is the protection class and can it be used in humid rooms?
The FAN E-EXTRA EAT100A has protection class IP X4, meaning it is splash-proof and suitable for humid rooms such as bathrooms and toilets.
What are the fan dimensions — will it fit a 140×140 mm opening?
Dimensions of the FAN E-EXTRA EAT100A are 140×140×110 mm (H×W×D), so it fits an opening around 140×140 mm and requires 110 mm depth for installation.
What are the power and voltage — does it need a separate circuit breaker?
Power is approximately 12 W and voltage 220 V for the FAN E-EXTRA EAT100A. This is a low load so a separate breaker is generally not required, but installation must follow local electrical safety rules.
Is this fan suitable for a kitchen range hood?
The FAN E-EXTRA EAT100A can be used in a kitchen when connected to a 100 mm duct, but for heavy grease, heat and odour removal a higher-capacity fan than ~120 m³/h may be preferable.
Can the fan be used with a backdraft/preventer valve?
The EAT100A is compatible with 100 mm ducts; use a backdraft valve sized for 100 mm and ensure it does not add excessive resistance that would reduce the ~120 m³/h airflow.
What is the housing colour and material — will it suit a modern bathroom?
The housing is anthracite plastic. The colour and finish suit modern bathrooms and kitchens, especially those with dark or neutral interiors.
Which duct size: 100, 125 or 150 mm?
Match the actual duct. A smaller diameter increases noise and reduces airflow; a larger one will require an adapter.
Axial or inline?
Short, straight run — axial; long/complex run — inline or centrifugal.
Do I need a backdraft damper?
Yes, to prevent reverse flow and odors from the shaft. Some models have it built in.
How to reduce noise?
Choose a “silent” version/mode, keep the correct diameter, use flexible connectors/anti-vibration mounts, and seal properly.
What IP rating for wet areas?
At least IPX4/IP44, and observe bathroom safety zones.
