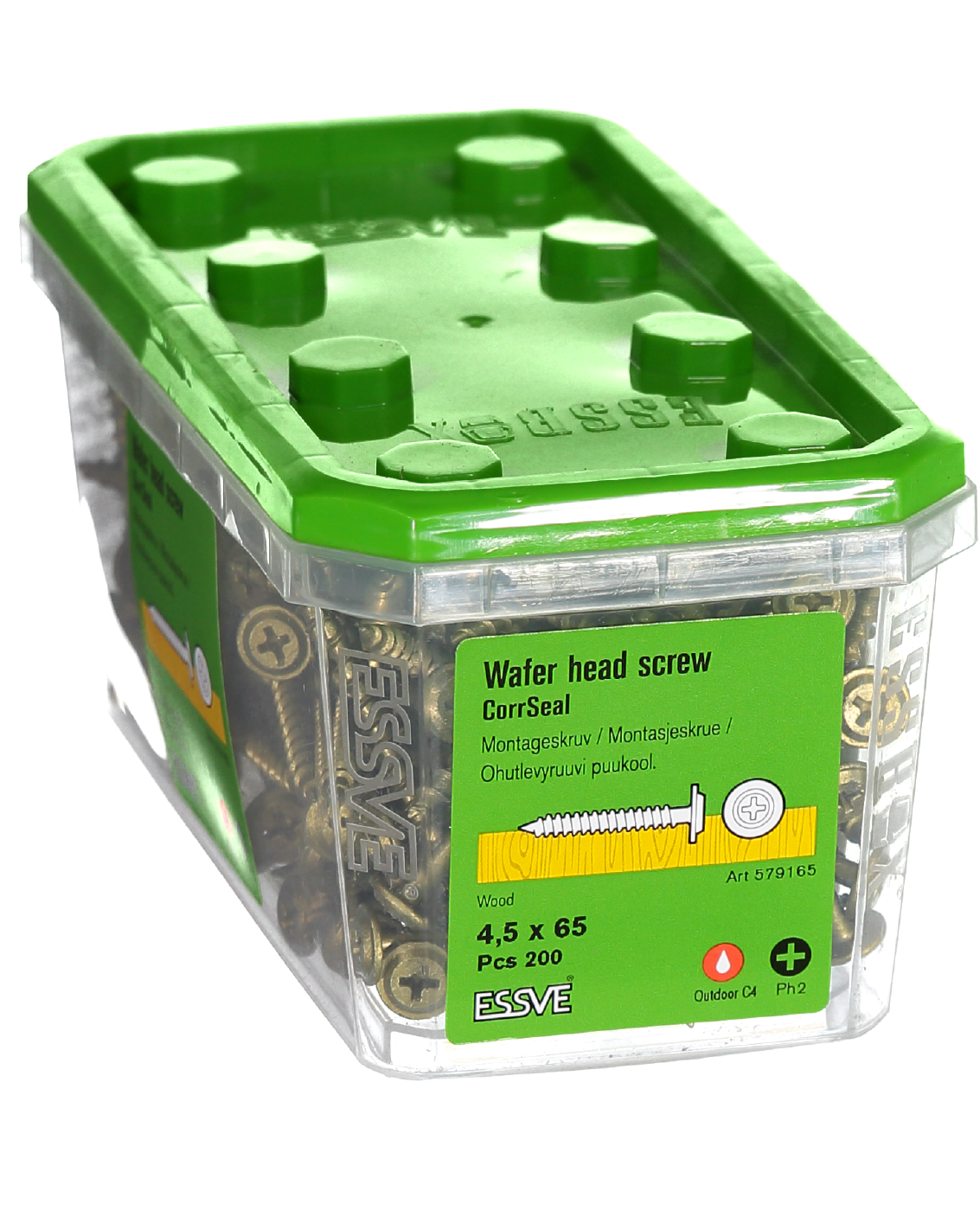

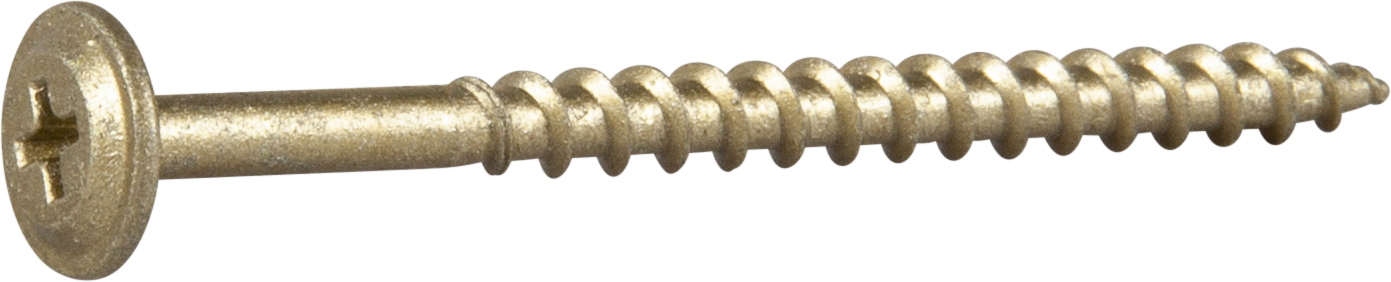

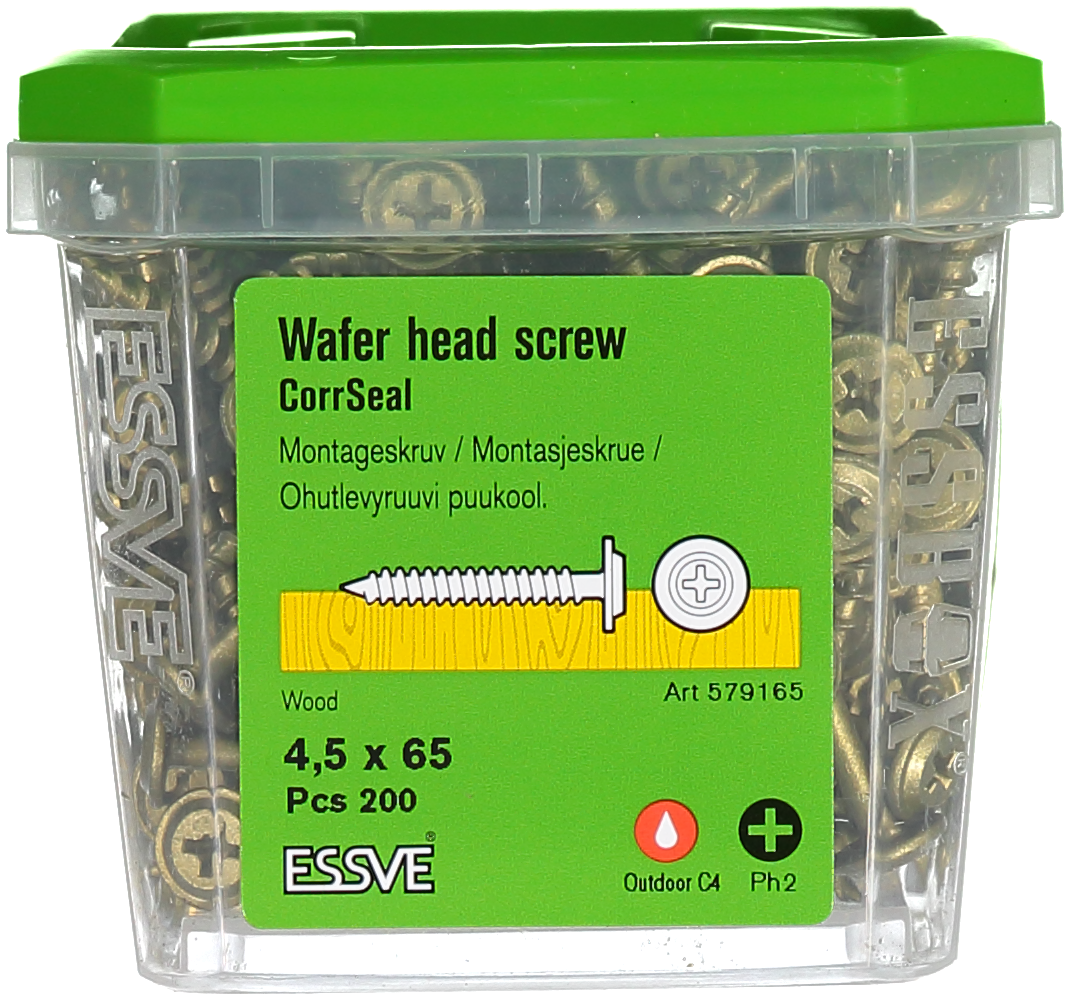

MOUNTING SCREW 4,5X65 TERAV PUIT PH2/CORRSEAL/ 200
DESCRIPTION MOUNTING SCREW 4,5X65 TERAV PUIT PH2/CORRSEAL/ 200 price 31.51€ ESSVE
| Package dimensions | 9,00 x 18,00 x 8,00 cm |
| Gross weight | 1,020 kg |
| Net weight | 1,080 kg |
KASUTUSVALDKOND
ESSVE montaažikruvi puitkarkassile on mõeldud plaatmaterjalide montaažiks välistingimustes puidust aluspinnale.
KIRJELDUS
Kruvi on valmistatud CorrSeali pinnatöötlusega karastatud terasest või roostevabast terasest A2, erilise keskkonna jaoks, nagu näiteks mereline keskkond. Kruvi on varustatud Philipsi ristpeaga Ph2. Termotöödeldud puitmaterjali puhul kasutada ainult roostevabast materjalist kruve. PAIGALDAMINE
Soovituslik pöörete arv: 400-1200 p/min. OTSAKU/PADRUNI TÜÜP: PH2
PEA DIAMEETER: 11
VÄLISDIAMEETER (MM): 4.5
PIKKUS (MM): 65
KEERME PIKKUS (MM): 50
SOOVITUSLIKUD PÖÖRDED (P/MIN): 400-1200
PINNATÖÖTLUS: CorrSeal
SERTIFIKAADID: CE, RISE CorrSeal
KASUTUSKESKKOND: Välitingimus
KORROSIOONIKLASS: C4
PÕHIMATERJALID: Teras
Description provided by sitypro.com
Related Products
Also looking for
Frequently asked questions about the MOUNTING SCREW 4,5X65 TERAV PUIT PH2/CORRSEAL/ 200
What is the MOUNTING SCREW 4,5X65 TERAV PUIT PH2/CORRSEAL/ 200?
MOUNTING SCREW 4,5X65 TERAV PUIT PH2/CORRSEAL/ 200 is an ESSVE 65 mm long, 4.5 mm diameter mounting screw with CorrSeal coating and PH2 cross head, designed for fixing board materials to wooden frames outdoors; thread length 50 mm, corrosion class C4.
What materials is this mounting screw suitable for?
The screw is for fixing board materials to wooden frames outdoors; typical uses include OSB, plywood and thin façade panels mounted on timber substrates.
Can these screws be used for thermo-treated wood?
For thermo-treated wood the manufacturer advises using only A2 stainless steel screws; the CorrSeal hardened steel version is not recommended for that application.
What coating does the screw have and what does it protect against?
The screw features a CorrSeal coating that increases corrosion resistance for outdoor use and meets corrosion class C4; the coating protects the steel from atmospheric corrosion.
What is the thread length and why does it matter?
Thread length is 50 mm out of a 65 mm total length; sufficient thread length ensures a secure grip in the timber substrate when fixing boards and prevents the screw from spinning out.
What head type and driver bit are needed for installation?
The screw has a Philips PH2 cross head, so use a PH2 bit; recommended driving speed with a screwdriver is 400–1200 rpm.
Is this screw suitable for marine environments?
For marine or highly aggressive environments use the A2 stainless steel version; the CorrSeal hardened steel version is not intended for continuous exposure to salt water.
What is the head diameter and outer diameter of the screw?
Head diameter is 11 mm and outer diameter is 4.5 mm; these dimensions help when choosing washers or calculating hole clearances.
What is the recommended driving speed for ESSVE 4.5x65 screws?
Recommended driving speed is 400–1200 rpm; this reduces risk of damaging the material and ensures optimal installation.
What certifications confirm the quality of this screw?
The screw holds CE and RISE CorrSeal certifications, confirming compliance and the durability of the coating for outdoor use.
What material is the screw made of and is there a stainless steel option?
Base material is hardened steel with CorrSeal coating; for special environments (e.g. marine or thermo-treated wood) an A2 stainless steel version is available.
