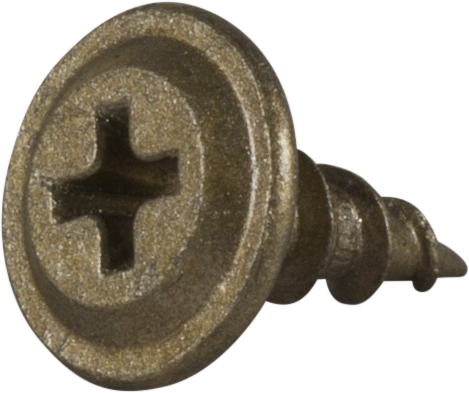

MOUNTING SCREW 4,5X13 TERAV PUIT PH2/CORRSEAL/250TK
DESCRIPTION MOUNTING SCREW 4,5X13 TERAV PUIT PH2/CORRSEAL/250TK price 13.55€ ESSVE
| Package dimensions | 9,00 x 9,00 x 8,00 cm |
| Gross weight | 0,410 kg |
| Net weight | 0,440 kg |
KASUTUSVALDKOND
ESSVE montaažikruvi puitkarkassile on mõeldud plaatmaterjalide montaažiks välistingimustes puidust aluspinnale.
KIRJELDUS
Kruvi on valmistatud CorrSeali pinnatöötlusega karastatud terasest või roostevabast terasest A2, erilise keskkonna jaoks, nagu näiteks mereline keskkond. Kruvi on varustatud Philipsi ristpeaga Ph2. Termotöödeldud puitmaterjali puhul kasutada ainult roostevabast materjalist kruve. PAIGALDAMINE
Soovituslik pöörete arv: 400-1200 p/min. OTSAKU/PADRUNI TÜÜP: PH2
PEA DIAMEETER: 11
VÄLISDIAMEETER (MM): 4.5
PIKKUS (MM): 13
KEERME PIKKUS (MM): 13
SOOVITUSLIKUD PÖÖRDED (P/MIN): 400-1200
PINNATÖÖTLUS: CorrSeal
SERTIFIKAADID: CE, RISE CorrSeal
KASUTUSKESKKOND: Välitingimus
KORROSIOONIKLASS: C4
PÕHIMATERJALID: Teras
Description provided by sitypro.com
Related Products
Also looking for
Frequently asked questions about the MOUNTING SCREW 4,5X13 TERAV PUIT PH2/CORRSEAL/250TK
What is the MOUNTING SCREW 4,5X13 TERAV PUIT PH2/CORRSEAL/250TK?
MOUNTING SCREW 4,5X13 TERAV PUIT PH2/CORRSEAL/250TK is an ESSVE mounting screw, 4.5 mm diameter and 13 mm length, with a PH2 Phillips head and CorrSeal coating for external timber constructions. It has 13 mm thread length, corrosion class C4 and CE/RISE certification.
What jobs is the TERAV PUIT screw intended for?
This screw is for fixing sheet materials to timber frames in external environments — façade cladding, fixing moisture-resistant boards and thin panels to wooden substrates. Use stainless-steel screws for thermally treated timber.
What is the screw's surface and what does CorrSeal mean?
The screw has a CorrSeal surface treatment — a protective coating that enhances corrosion resistance for outdoor use. CorrSeal gives better protection than plain steel and is suitable for corrosion class C4.
Is this screw suitable for marine climate or saltwater exposure?
The description notes that for aggressive environments like marine climates, use the A2 stainless-steel version rather than hardened steel with CorrSeal. For coastal conditions, choose the A2 stainless variant.
What is the recommended screwdriver RPM for installing 4.5x13?
Recommended RPM for installation is 400–1200 rpm, allowing the ESSVE screw to be driven correctly without stripping the head or overheating the material. Use a PH2 bit and control torque for thin panels.
What head does the screw have and which bit to use?
The screw has a Philips PH2 cross head, so use a PH2 bit for installation. This gives a secure fit and reduces the risk of cam-out.
Can these screws be used for thermally modified timber?
The description states that for thermally treated timber you should use only stainless-steel screws; the hardened steel with CorrSeal is not recommended — choose the A2 stainless version instead.
What is the thread length and why does it matter for fixing boards?
The thread length is 13 mm, matching the screw length. For thin boards and fastening to slim battens this provides adequate grip into the timber substrate without excessive protrusion.
Is this screw suitable for fixing plasterboard to a wooden frame?
Yes — with 4.5 mm diameter and 13 mm length it is suitable for fixing thin sheet materials like plasterboard or façade panels to a wooden frame, provided board and substrate thicknesses are compatible. Control depth and torque.
What certifications does this model have and what do they mean?
This model holds CE and RISE CorrSeal certifications, indicating conformity with EU requirements and assessment of the CorrSeal coating. They demonstrate suitability for outdoor applications.
