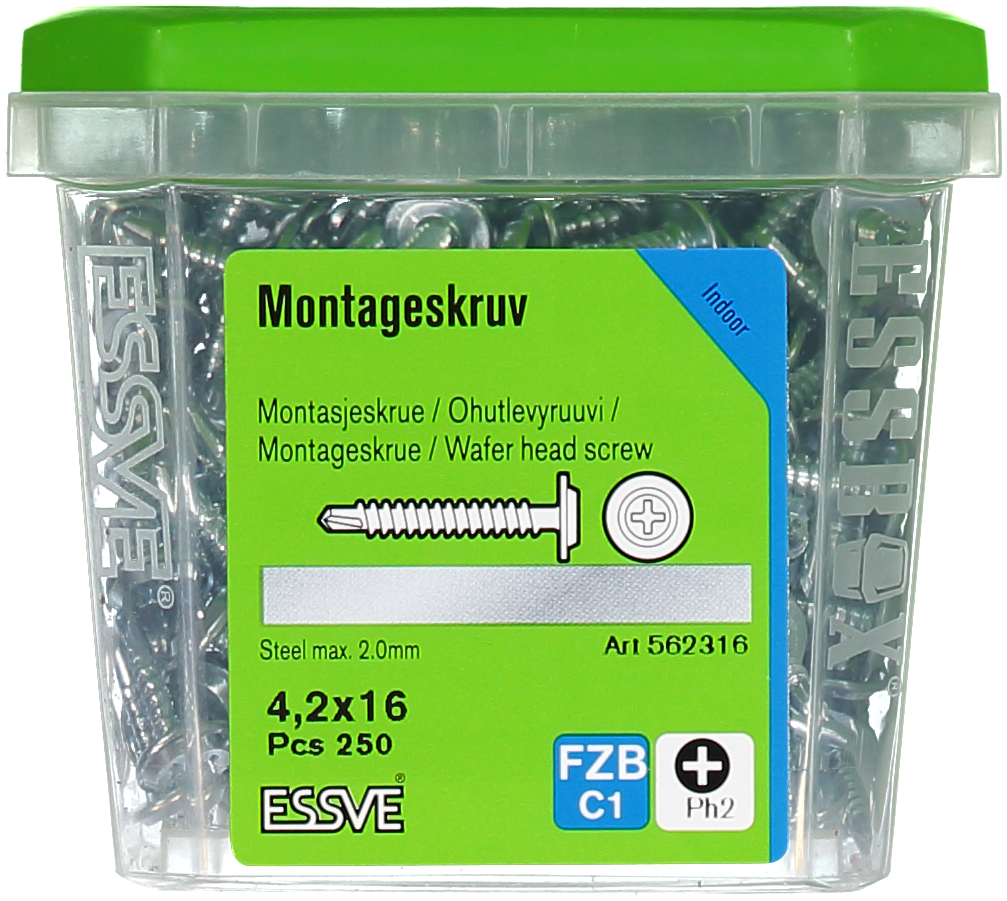

MOUNTING SCREW 4,2X16 PUUR 0,7-2,0 PH2/ZN/C1/ 250TK
DESCRIPTION MOUNTING SCREW 4,2X16 PUUR 0,7-2,0 PH2/ZN/C1/ 250TK price 11.12€ ESSVE
| Package dimensions | 9,00 x 9,00 x 8,00 cm |
| Gross weight | 0,490 kg |
| Net weight | 0,520 kg |
KASUTUSVALDKOND
ESSVE puurotsaga montaažikruvi on mõeldud plaatmaterjalide montaažiks teraskarkassi. Puurimisjõudlus 0,7-2,0 mm. KIRJELDUS
Kruvid on valmistatud karastatud terasest, läikivaks tsingitud pinnatöötlusega, läikivad, musta või valget värvi. Olemas ka CorrSeal pinnatöötlusega, mis teeb võimalikuks kruvi kasutamise välistingimustes. Varustatud Philipsi ristpeaga Ph2.
PAIGALDAMINE
Soovituslik pöörete arv: 400-1200 p/min. OTSAKU/PADRUNI TÜÜP: PH2
PEA DIAMEETER: 11
VÄLISDIAMEETER (MM): 4.2
PIKKUS (MM): 16
KEERME PIKKUS (MM): 14
SOOVITUSLIKUD PÖÖRDED (P/MIN): 400-1200
PUURITAVUS MIN/MAX: 0,7 / 2
PINNATÖÖTLUS: Tsink pinnakattega
SERTIFIKAADID: CE
KASUTUSKESKKOND: Sisetingimus
KORROSIOONIKLASS: C1
PÕHIMATERJALID: Teras
Description provided by sitypro.com
Related Products
Also looking for
Frequently asked questions about the MOUNTING SCREW 4,2X16 PUUR 0,7-2,0 PH2/ZN/C1/ 250TK
What is the MOUNTING SCREW 4,2X16 PUUR 0,7-2,0 PH2/ZN/C1/ 250TK and what is it used for?
MOUNTING SCREW 4,2X16 PUUR 0,7-2,0 PH2/ZN/C1/ 250TK is an ESSVE drill-point mounting screw, 4.2 mm diameter and 16 mm length, for fixing sheet materials to steel frames of 0.7–2.0 mm thickness; it has a PH2 Phillips head and zinc finish, corrosion class C1.
Is this screw suitable for outdoor use and are there different finishes?
The standard screw has a zinc finish and is intended for indoor use (corrosion class C1). For outdoor use choose the CorrSeal finish option, which provides improved corrosion resistance.
What metal thickness can this drill-point screw penetrate (drillability range)?
The PUUR drill point is rated for drilling steel from 0.7 to 2.0 mm thickness, making it suitable for fixing sheets to steel frames within that range.
What are the screw dimensions — outer diameter, length, thread length and head diameter?
Specifications list outer diameter 4.2 mm, length 16 mm, thread length 14 mm, head diameter 11 mm. Head type is PH2.
What type of tip does the screw have and what bit is needed for installation?
The screw has a PUUR drill tip and a PH2 Phillips head; use a PH2 bit or screwdriver/driver with PH2 attachment for installation.
What driver RPM is recommended when installing this screw?
Recommended installation speed is 400–1200 rpm, which provides proper drilling and thread formation without overheating.
Is this screw suitable for fixing drywall to a metal frame?
Yes — the screw is designed for sheet materials such as drywall to steel frames of 0.7–2.0 mm thickness. Use a PH2 bit and the recommended 400–1200 rpm.
What colours are available — are black or white screws offered?
The description states screws come in bright zinc finish and are also available in black or white. For outdoor use, choose the CorrSeal-treated version if provided in the desired colour.
What is the thread length and will 16 mm length hold a sheet securely?
Thread length is 14 mm of the 16 mm total length, which is sufficient for engagement with thin-walled steel profiles (0.7–2.0 mm). Thicker substrates require longer screws.
What certification does this screw have and what operating conditions is it recommended for?
The screw is CE certified and recommended for indoor use (corrosion class C1). For damp or outdoor conditions, opt for the CorrSeal finish.
Is this screw suitable for metal ceiling profiles in a frame?
Yes — with drilling capacity 0.7–2.0 mm and 4.2 mm diameter, the screw is suitable for fixing drywall and other sheets to ceiling steel profiles within that thickness range.
What is the screw made of and how does that affect fastening strength?
Made of hardened steel, the screw offers high mechanical strength and reliable holding power when fastening sheet materials to a steel frame.
