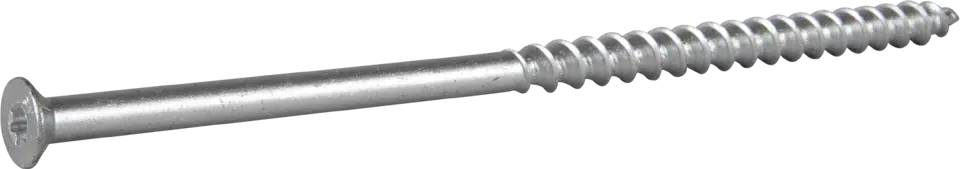

CONCRETE SCREW 8x130 PP TX30/CORRSEAL/C4/ 8tk
DESCRIPTION CONCRETE SCREW 8x130 PP TX30/CORRSEAL/C4/ 8tk price 6.45€ ESSVE
ESSVE kergbetoonikruvi kasutatakse kinnitamiseks poorsetesse materjalidesse, nagu kergbetoon ja kergklinker (nimetatakse ka lecaks, ytongiks, sinibetooniks jne). Kergbetoonikruvi saab kasutada puit- ja teraskarkassi sõrestikupostide montaažiks, alustalamontaažiks, puitsisustustoodete ülespanekuks, isolatsiooni kinnitamiseks jne. Isolatsiooni montaažil võib kasutada nt ESSVE isolatsioonihoidja seibi Ø90 mm, art. nr 36122.
Kruvi klassifitseerub korrosiooniklassi C4, mis tähendab, et see toimib suurepäraselt nii sise- kui ka väliskeskkonnas.
Description provided by sitypro.com
Related Products
Also looking for
Frequently asked questions about the CONCRETE SCREW 8x130 PP TX30/CORRSEAL/C4/ 8tk
What is CONCRETE SCREW 8x130 PP TX30/CORRSEAL/C4/ 8tk and what is it used for?
CONCRETE SCREW 8x130 PP TX30/CORRSEAL/C4/ 8tk is an ESSVE concrete screw, 8 mm diameter and 130 mm length, TX30 drive with CORRSEAL coating in corrosion class C4. It’s designed for porous materials (aerated concrete, lightweight aggregate) for fixing timber and steel frame posts, subframe mounting, interior fixtures and insulation anchoring.
Is this screw suitable for fixing insulation?
Yes. CONCRETE SCREW 8x130... is suitable for insulation fixing; for load distribution use with an ESSVE insulation washer Ø90 mm (art. 36122). The CORRSEAL coating and C4 corrosion class make it suitable for both indoor and outdoor use.
What materials can this screw be used in?
CONCRETE SCREW 8x130... is designed for porous materials: aerated concrete, lightweight aggregate blocks (leca), Ytong and similar. It is not intended for dense solid concrete or hard brick without choosing a suitable anchor.
What are the screw length and diameter and what does that mean for embedment depth?
The screw is 8 mm in diameter and 130 mm long. Ensure the threads embed sufficiently into the aerated concrete; part of the length will be used through the fixed material, so plan embedment depth according to the thickness of the fixture and required grip.
What drive does the screw have and what bit is needed?
CONCRETE SCREW 8x130... uses a TX30 (Torx 30) drive. Use a TX30 bit and a drill/driver with adjustable torque for controlled installation.
Can this screw be used outdoors and in wet areas?
Yes. The CORRSEAL coating and C4 corrosion classification make this screw suitable for both indoor and outdoor applications, including areas with elevated moisture.
How many pieces are in the pack and are there other pack sizes?
This model is marked 8tk — the pack contains 8 pieces. Check the ESSVE product range or SKU listings for other pack size options.
How does this screw differ from a standard aerated concrete anchor?
CONCRETE SCREW 8x130... is a self-tapping screw designed to be driven directly into porous concrete without a separate expansion sleeve, whereas anchors often need additional sleeves or plugs. Screws provide faster installation and are suited to frame and insulation fixings.
What load-bearing performance does this screw have for frames?
The description states suitability for fixing timber and steel frames into aerated concrete. Exact load-bearing values depend on substrate properties and design; consult ESSVE technical datasheets and calculation tables for precise load capacities.
Do I need to drill a hole before installing this screw?
Typically a pilot hole is drilled into aerated concrete so the screw threads engage properly and to prevent cracking. Refer to ESSVE installation guidance for recommended drill diameters.
What other fasteners can be combined with this screw (washers, holders)?
For insulation mounting use an ESSVE insulation washer Ø90 mm (art. 36122). You can also use compatible flat or pressed washers and subframe fixings sized for an 8 mm screw and TX30 drive.
