ETICS ISOL.TYPEBEL CN8/210 100t
SPECIFICATION ETICS ISOL.TYPEBEL CN8/210 100t price 43.35€ Sakret

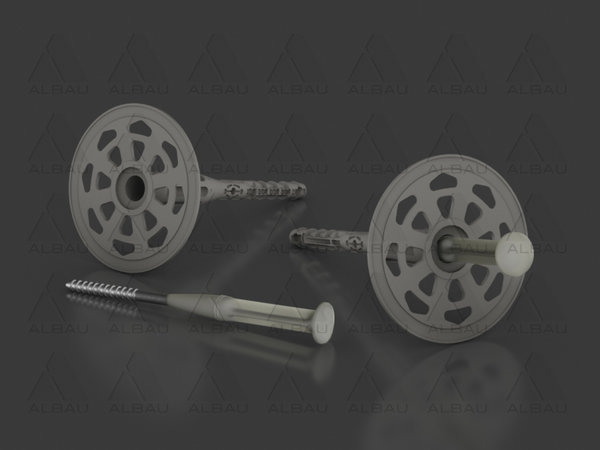

Hammer dowel for fixing the insulating material of facade insulation systems, such as EPS, XPS, mineral wool, PU boards, cork boards and fiber boards, in concrete, honeycomb bricks, solid bricks and lightweight concrete (substrate categories A, B, C, D, E). The composite nail (metal tip and plastic shank reinforced with nylon fibers) eliminates the possibility of cold bridges (point thermal conductivity = 0.000 - 0.001 W/K).
- Certified according to the ETAG 014 guide, certificate of conformity ETA 09/0394.
- Required anchoring depth - 35 mm (A,B,C,D) 55 mm (E).
- Anchoring part Ø 8 mm.
- Lengths 110-390 mm.
Use categories A, B, C, D, E:
- Concrete
- Silicate bricks
- Clay bricks
- Concrete blocks
- Honeycomb silicate bricks
- Honeycomb clay bricks
- Hollow lightweight concrete blocks
- Lightweight concrete blocks/ceramic blocks
Suitable material to be attached:
- Mineral wool tiles
- EPS boards
- Polyurethane foam boards
Detailed information
Total weight: 0.01 kgPackage dimensions: 21.00 x 6.00 x 6.00 cm
