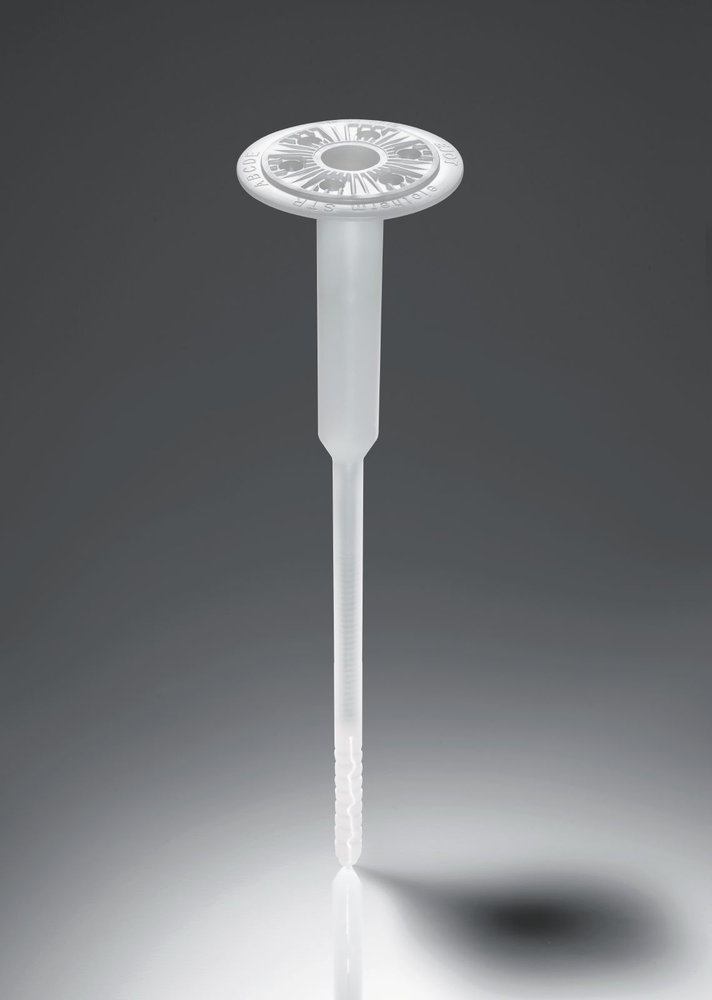

EJOT DOwel STR U 2G 255mm
DESCRIPTION EJOT DOwel STR U 2G 255mm price 1.50€ Ejot
Universal screw dowel recessed and flush with the surface
for installation on concrete and masonry
For all substrates (A, B, C, D, E)
For all thermal insulation materials
For deep and flat installation
To create uniform and smooth surfaces
Up to 40% less screwing time
With European Technical Approval (ETA)
Suitable for all classes of building materials
The EJOT STR principle with the ejotherm STR rondelle, for creating even surfaces and a plaster layer of one thickness - simply, quickly and without milling dust
Up to 40% less screwing time
Optimized cold bridges (0.001 W/K)
Installation flush with the surface is also possible with the ejotherm STR cap
The shortest installation depth, the highest load capacity ensures maximum safety, the installation quantity of dowels is moderate
Long-lasting installation pressure
Pre-assembled screw for quick installation
100% installation reliability: the sink of the washer indicates a solid installation
Dimensions:
dowel diameter: 8 mm
washer diameter: 60 mm
depth of drilled hole, recessed installation h1 ≥: 50 mm (90 mm)
depth of drilled hole, flush installation h2 ≥: 35 mm (75 mm)
installation depth hef ≥: 25 mm (65 mm)
screw head type: TORX T30
point-based heat transfer coefficient χ:
recessed installation: 0.001 W/K
flush mounting: 0.002 W/K
ETA usage categories*: A, B, C, D, E
DIBt permit: Z-21.2-1769
European Technical Approval: ETA-04-0023
Values in parentheses: installation in aerated concrete (use category E)
Detailed information
Total weight: 0.05 kgPackage dimensions: 25.50 x 6.00 x 6.00 cm
