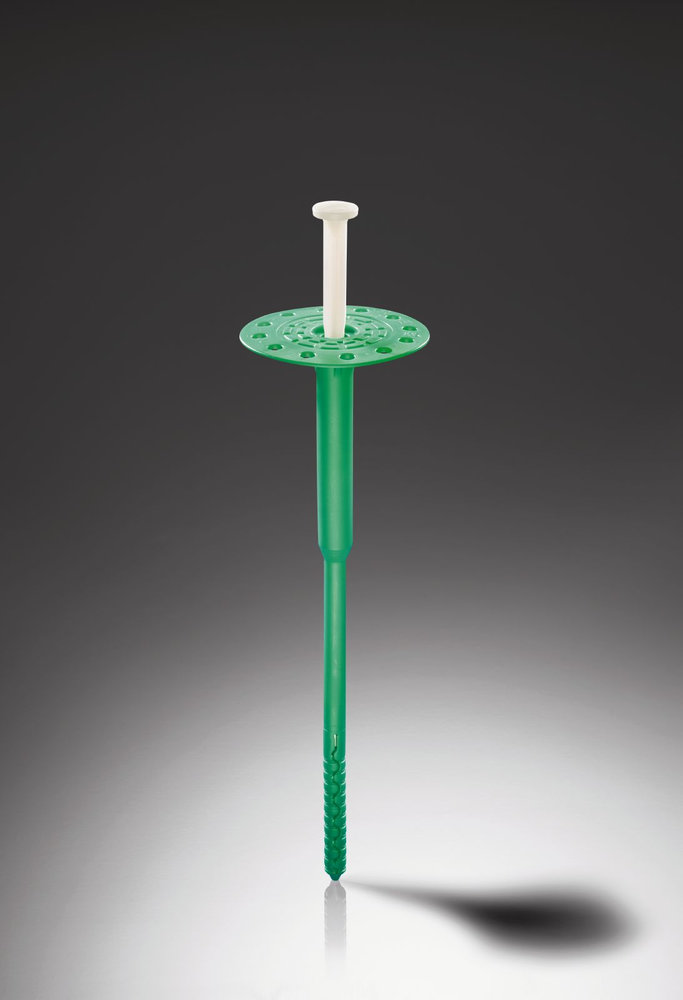

EJOT TYPE H4 D8/60X275MM

• Approved for all substrates (A, B, C, D, E)
• Combined plastic and steel nail
• The plastic cap reduces the formation of cold bridges
• Can be installed with an additional plate
• Very good tensile strength even on problematic substrates
• Complete set
• Designed for mineral wool and polystyrene

Technical specifications:
• Case diameter: 8 mm
• Plate diameter: 60 mm
• Drill hole depth: h₁ ≥ 35 mm
• Min anchoring depth: hef ≥ 25 mm (A, B, C)
• Min anchoring depth: hef ≥ 65 mm (D, E)
• Point thermal conductivity: 0.002 W/K
• For substrates A, B, C, D, E
• European Technical Approval ETA-11/0192
